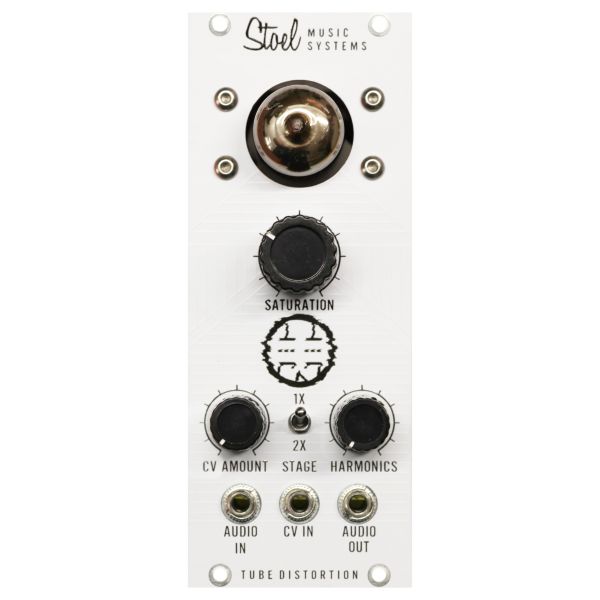

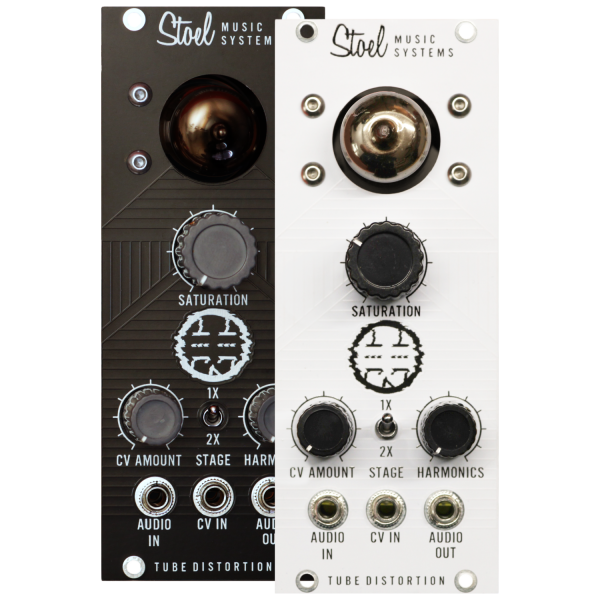

Vacuum Tube Distortion
As low as
$275.00
The Stoel Music Systems Vacuum Tube Distortion provides two stages of vacuum tube distortion/waveshaping with a switch that selects between using one or both gain stages in series. 650mA +12V current draw at turn on.
Availability:
In stock
Only %1 left
SKU
EM1222-CF
The Stoel Music Systems Vacuum Tube Distortion provides two stages of vacuum tube distortion/waveshaping with a switch that selects between using one or both gain stages in series. The first stage is always active. A two-position switch adds the second stage in series after the first. The harmonics knob controls the amount of even-order or odd-order harmonics in the first gain stage. The saturation knob controls the gain and the shaping of the waveform. The saturation is also controllable with CV by using the front panel jack and corresponding knob to set the amount of CV applied to the shape parameter. At extreme negative CV, the tube will go into cutoff, making it function as a voltage-controlled gate. The recommended tube is a 12AT7/ECC81, which ships with the module. If experimenting with tubes is desired, we suggest trying variations of the 12AU7, including the ECC82, ECC802, 5814A, 6189, or 6680. The 12AX7 will also function and does not harm the module, but during our testing, the sonic results varied too widely from tube to tube for us to recommend using it, so consider it an experimental option. We do not recommend or support the use of any other tubes. The tube socket is a high-quality ceramic socket.
More Information
| +12V Current Draw | 370ma (650ma peak) |
|---|---|
| -12V Current Draw | 10ma |
| +5V Current Draw | 0ma |
| Mounting Screws | 4 |
| Module Type | Effects |
| Mounting Depth | 55mm |
| HP Size | 10 HP |
| Cable Required? | Yes |
