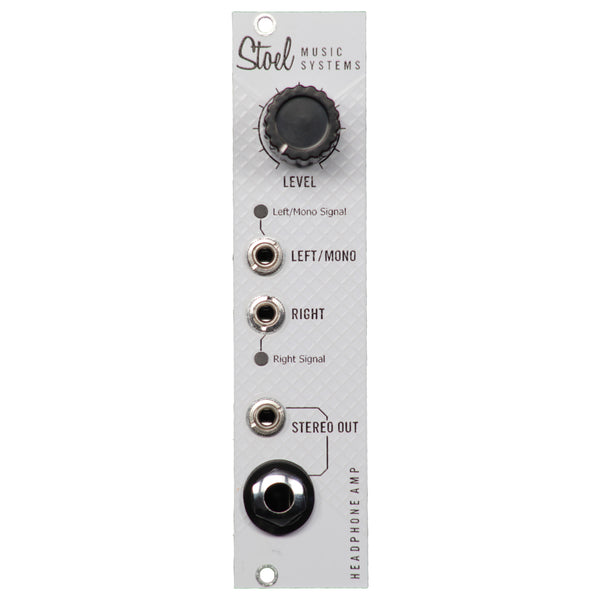

The Stoel Music Systems Headphone Amplifier provides a high-fidelity headphone amplifier with a discrete transistor output section. It accepts mono or stereo signals. The signal is copied to the right channel if only the left input jack is connected. Each input has a signal presence LED, and the headphone output is available on both 1/4" and 1/8" stereo jacks.

WARNING: When used with headphones, this device can deliver sound pressure levels over 85dB, which may cause permanent hearing damage.

All Stoel Music Systems modules feature aluminum front panels with a durable high-gloss white finish. For a crisp appearance and exceptional durability, the front panel markings are digitally printed at high-resolution with UV-cured ink. Mounting holes are plated to significantly reduce screw rash. The power connection features polarity protection to prevent accidental damage to the module if it is connected backward.

Each module includes a 12” long 10-pin to 16-pin ribbon cable compatible with the Eurorack standard, M3 mounting screws, and a complimentary sticker.

A stereo amplifier designed especially for headphones
Accepts mono or stereo signals
The signal is copied to the right channel if only the left input jack is connected
Each input has a signal presence LED
The headphone output is available on both 1/4" and 1/8" stereo jacks

Technical Specifications

Width	6 HP
Depth	36 mm
Current Draw	+12V: 85mA, -12V: 80mA, +5V: 0mA
